Choosing the Right pH Sensor: Glass vs ISFET, Junctions, and Media Matching

There is a question we hear almost every week at DP-Flow: "Which pH sensor do I need?" It sounds simple enough, but the answer depends on your process media, your operating conditions, your industry's safety requirements, and how much maintenance you are willing to accept. Choose well, and you get years of reliable measurement with minimal intervention. Choose poorly, and you face drift, premature failure, and the nagging suspicion that your readings are not telling the whole truth. This guide walks you through the decisions that matter, so you can specify with confidence.

Glass Electrodes: The Gold Standard

The glass pH electrode has been the backbone of process pH measurement for decades, and for good reason. A well-specified glass sensor delivers exceptional accuracy across the full pH 0 to 14 range, with fast response times and excellent long-term stability. Knick's glass electrode range covers process temperatures up to 135°C and pressures that suit the vast majority of industrial applications. For general chemical processing, water treatment, pharmaceutical production, and most other environments, glass remains the first choice.

When we specify a Knick SE 554 or SE 555 for a standard application, we know from decades of field experience that the sensor will deliver accurate, stable readings over its service life. Glass electrodes also respond quickly to pH changes, which matters in dosing control and batch processes where a sluggish sensor translates directly into poor process control.

The limitation, of course, is in the name. Glass can break. In food and beverage production, a glass fragment in the product stream is a serious safety incident, potentially triggering a full batch recall. That risk brings us to the alternative.

ISFET Sensors: When Glass Is Not an Option

ISFET (Ion-Sensitive Field Effect Transistor) sensors use a solid-state semiconductor chip instead of a glass membrane to measure pH. There is no glass bulb to shatter, which makes ISFET the preferred technology in food, beverage, and any application where glass-free operation is a regulatory or safety requirement.

Knick offers ISFET sensors with the same Memosens digital interface as their glass range, which means you can switch between glass and ISFET without changing your transmitter, your wiring, or your data infrastructure. That interchangeability is genuinely useful; it allows you to use ISFET where safety demands it and glass everywhere else, all within a single standardised measurement platform.

It is worth being honest about the trade-offs. ISFET sensors have a narrower effective pH range, typically performing best between pH 2 and 12. Response time is generally slower than glass, and long-term stability can be less predictable in some media. For applications requiring measurement at pH extremes or where the highest accuracy is essential, glass remains superior. However, in food and beverage environments where the pH range is moderate and the glass-free requirement is non-negotiable, ISFET is the right answer. The key is knowing which technology fits your specific application, not assuming one is universally better.

Understanding Junction Types

If the electrode is the heart of a pH sensor, the reference junction is its lifeline. The junction provides the electrical connection between the reference electrolyte inside the sensor and the process media outside. The type of junction you choose has a direct effect on sensor life, measurement stability, and maintenance frequency. It is one of the most overlooked aspects of sensor specification, and getting it wrong is one of the most common causes of premature failure.

A single ceramic pore junction, as found in the Knick SE 554, is the simplest and most economical design. It works well in clean, low-fouling media where there is minimal risk of the pore becoming blocked. For clean water applications, standard chemical processes, and laboratory-grade measurements, a single pore junction is perfectly adequate and offers predictable performance.

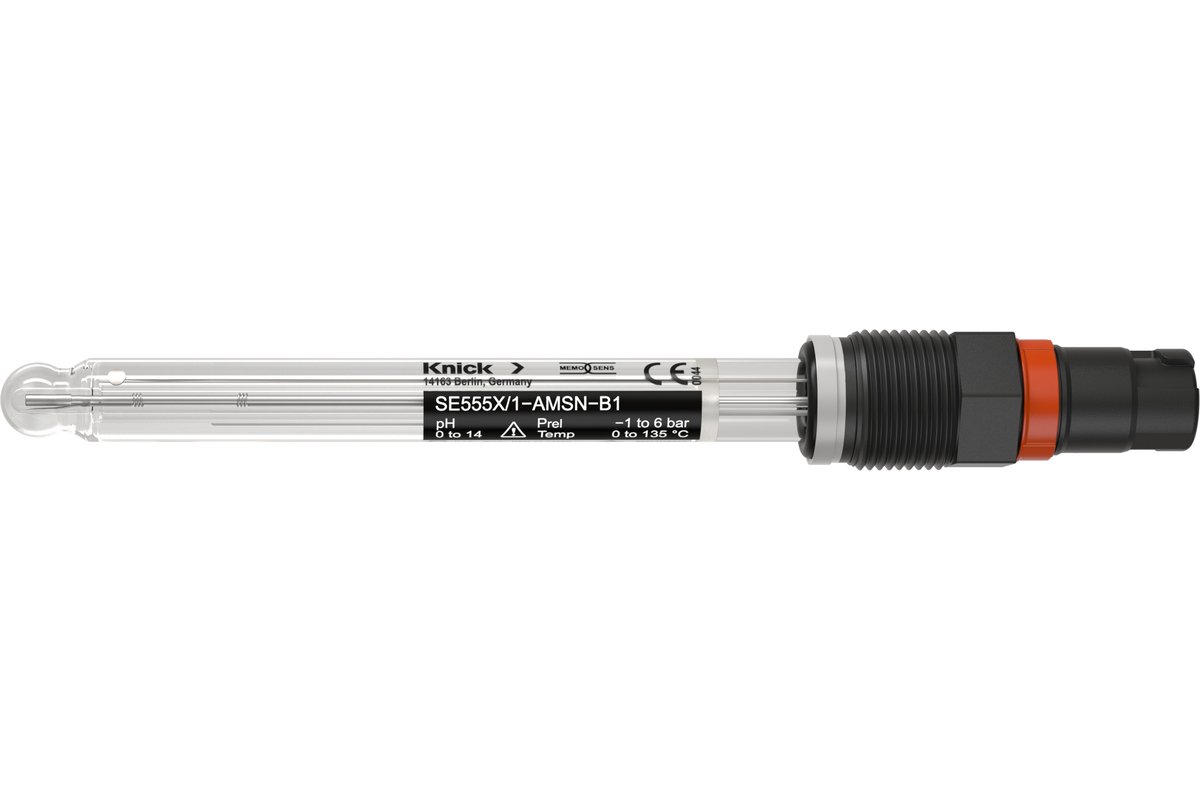

When the process media has a higher fouling tendency, an annular ceramic junction provides a much larger contact area between reference electrolyte and process. The Knick SE 555 uses this design, and the increased surface area makes it significantly more resistant to blockage from suspended solids, oils, or biological material. We specify the SE 555 frequently for food and beverage, general chemical, and pharmaceutical applications where process cleanliness cannot always be guaranteed.

A double junction sensor, such as the Knick SE 558, adds an extra electrolyte barrier between the reference element and the process. This protects against reference poisoning, where process chemicals migrate into the reference system and cause drift or failure. Double junction designs are particularly valuable in low-conductivity water, where contamination risk is highest, and in applications involving sulphides, heavy metals, or other species known to poison silver chloride reference elements.

For the most demanding conditions, the Knick SE 571 uses an open junction design. Rather than a ceramic frit or pore, the reference electrolyte flows freely into the process through an open channel. This eliminates the possibility of junction blockage entirely, making it the sensor of choice for viscous media, heavy slurries, and processes with extreme fouling. The trade-off is higher electrolyte consumption and the need for a pressurised electrolyte reservoir, but in applications where conventional junctions simply cannot survive, an open junction is the only practical solution.

Matching Sensor to Media

With an understanding of both electrode types and junction designs, the real skill lies in matching the right combination to your specific process. This is where experience counts, and where specifying correctly at the outset saves considerable time and money down the line.

For clean water and low-conductivity applications such as boiler feedwater, condensate return, or demineralised water systems, the SE 558 with its double junction is our standard recommendation. Low-conductivity water is surprisingly aggressive towards pH sensors; the lack of dissolved ions accelerates reference poisoning, and a double junction provides the necessary protection to maintain stable readings over extended service periods.

General chemical processing applications, where the media is moderately aggressive and the pH range falls between 1 and 13, are well served by the SE 554 or SE 555 depending on fouling risk. The annular junction of the SE 555 gives additional insurance in processes where solids or precipitates may be present.

Pharmaceutical and biotech applications demand the right process connection as well as the right sensor. We frequently specify the SE 555 with a Knick SensoGate WA 130H retractable fitting, allowing the sensor to be withdrawn under full pressure for calibration or replacement without breaking containment. In sterile processes, maintaining the integrity of the process boundary is not optional.

Food and beverage installations typically require either an SE 555 with annular junction or an ISFET sensor, depending on whether glass-free operation is mandated. Many food manufacturers now specify glass-free as standard across all product-contact measurement points, making ISFET the default choice.

Aggressive chemical environments at pH extremes below 1 or above 13, or involving hydrofluoric acid, strong alkalis, or other highly corrosive media, call for specialist sensor construction. The Knick SE 547N with Ceramat fitting is designed for exactly these conditions, using chemically resistant materials throughout to withstand media that would destroy conventional sensors in hours.

High-temperature processes above 80°C require sensors engineered for thermal endurance. The Knick SE 555 is rated for sustained operation at elevated temperatures, with glass formulations and seal materials selected for thermal cycling resistance. Specifying a standard sensor for high-temperature duty is a false economy; it will fail prematurely, and the resulting measurement gap costs more than the price difference.

The Role of the Fitting

The process fitting is often treated as an afterthought, but it plays a critical role in measurement quality and operational practicality. Immersion fittings suit open tanks and atmospheric vessels; inline fittings with appropriate pressure ratings are essential for pressurised pipework.

Retractable fittings, such as the Knick SensoGate range, transform maintenance workflows in demanding applications. The ability to withdraw a sensor from a pressurised, high-temperature, or sterile process without shutting down opens up possibilities that fixed installations cannot match. Sensors can be inspected, cleaned, and swapped on a planned schedule rather than waiting for failure. In pharmaceutical and chemical applications, retractable fittings are increasingly specified as standard.

For extreme fouling environments, the Ceramat fitting complements open junction sensors with self-cleaning capability. The fitting and sensor work together as a system; specifying one without considering the other is a common mistake that we help our customers avoid.

Why Memosens Changes the Conversation

Every Knick sensor we have discussed in this article shares one thing in common: the Memosens digital interface. This is not a marketing detail; it fundamentally changes how you manage pH measurement across a facility.

Memosens stores calibration data, sensor health diagnostics, sensor identification, and operating history directly on the sensor head. When you connect a Memosens sensor to a transmitter, such as the Knick Protos II 4400, the transmitter reads the sensor's stored data automatically. There is no manual entry of calibration values, no risk of transcription error, and a complete audit trail of every sensor's life from first calibration to end of service.

The practical benefit is significant. You can pre-calibrate spare sensors on the bench in controlled conditions, store them ready for use, and swap them into service in minutes. The process sees only a brief interruption rather than an extended calibration procedure at the measurement point. For operators working in hazardous, hot, or confined spaces, this is a meaningful safety improvement as well as a time saving.

Because all Memosens sensors share the same digital interface, you can change sensor type without altering wiring, transmitter configuration, or data architecture. If you start with a glass electrode and later decide an ISFET is more appropriate, the swap is straightforward. The Protos II 4400 transmitter accepts any Memosens sensor type, giving you flexibility to optimise your measurement points over time as you learn more about your process.

Getting It Right First Time

Sensor selection is not complicated when you approach it methodically. Understand your media, your operating conditions, and your industry's requirements. Match the electrode type, junction design, and process fitting to those conditions. Use the standardisation that Memosens provides to simplify your spares, maintenance, and documentation.

At DP-Flow, this is exactly the conversation we have with every customer. We ask the questions that matter: what are you measuring, at what temperature and pressure, what is the fouling risk, and what are your safety and regulatory constraints? From those answers, we specify the right sensor, junction, fitting, and transmitter combination, and we get it right first time. If you are specifying new pH measurement points, replacing ageing sensors, or frustrated with your current installation, get in touch with DP-Flow. We would rather spend thirty minutes understanding your application now than have you spend months dealing with a sensor that was never right for the job.
